Optimal control, MPC and estimation with CasADi

DAEdalus can hand any model it translates to CasADi, the open-source framework for nonlinear optimization and optimal control. On top of that, the daedalus_casadi Python package (in python/) solves three kinds of problem:

• optimal control problems (OCP), such as a minimum-time move;
• model predictive control (MPC): an OCP re-solved in a closed loop;
• moving horizon estimation (MHE) of states and parameters from measurements.

The model stays in Modelica. Inputs that the optimizer may choose are top-level input variables, and every other model variable can appear in a cost or a constraint by its name.

#How it works

.mo ──► DAEdalus frontend + backend ──► daedalus export-casadi ──► JSON ──► daedalus_casadi ──► CasADi / IPOPT
        (alias elimination, index                                            (SX expressions,
         reduction, BLT, tearing)                                             direct collocation)

daedalus export-casadi writes the model as DAEdalus compiles it for simulation. That is a semi-explicit DAE of index 1:

der(x) = f(t, x, z, u, p)
     0 = g(t, x, z, u, p)

The hard symbolic work therefore happens before CasADi sees the model:

• alias elimination;
• Pantelides index reduction;
• BLT sorting and tearing.

The optimizer gets a small, well-posed system. For example, the hydraulic aileron actuator has 6 states and 2 algebraic unknowns, out of a few hundred flat equations.

The JSON document also holds the value of every variable after DAEdalus' own initialization. These values give a consistent initial state, and guesses for z, even when the model initializes from steady-state initial equations.

Conversions.

• Event relations become if_else expressions.
• Tables become piecewise polynomials with the same interpolation and extrapolation as the simulator.
• when-clauses are not part of a continuous optimization problem. They are left out with a warning. Discrete variables, and pre() of non-continuous variables, keep their initial values.
• delay(), clocked equations and functions with while-loops are reported as unsupported.

#Setup

cargo build --release                  # builds target/release/daedalus
pip install casadi numpy matplotlib    # matplotlib only for the example plots

The package is plain Python. Either:

• run the examples from the repository;
• add python/ to PYTHONPATH;
• or install it with pip install -e python.

It finds the daedalus executable in this order:

1. $DAEDALUS_BIN;
2. PATH;
3. target/release of the checkout.

#Export

From the command line:

./target/release/daedalus export-casadi library/Daedalus \
    -m Daedalus.Examples.OptimalControl.AileronServo -o servo.json [-p name=value ...]

From Python:

import daedalus_casadi as dc

m = dc.export("Daedalus.Examples.OptimalControl.AileronServo")   # or dc.load("servo.json")
m.x_names, m.z_names, m.u_names, m.p_names
m.ode, m.alg                 # casadi.SX in m.t, m.x, m.z, m.u, m.p
m["delta_deg"]               # any variable as an expression of t, x, z, u, p
m.x0, m.z0, m.u0, m.p0       # values after DAEdalus' initialization
m.dae_function()             # Function(t, x, z, u, p) -> (ode, alg)
m.jacobians()                # linearization (A, B), with z eliminated
dc.simulate(m, t_grid, u=..) # CasADi IDAS / CVODES, inputs held per interval

#Optimal control

dc.OCP transcribes the model by direct collocation:

• inputs are constant on each interval;
• states follow polynomials through Radau IIA points, which are stiffly accurate and suit DAEs;
• algebraic variables are unknowns at every collocation and mesh point.

Unknowns are scaled by each variable's nominal attribute or initial magnitude. IPOPT then sees numbers of order one, even for pressures in pascal.

ocp = dc.OCP(m, N=40, free_time=True, T_guess=0.06)   # or T=0.1 for a fixed horizon
ocp.bound("u", -1, 1)                                  # inputs, or any variable on the mesh
ocp.subject_to(ocp.final("delta_deg") == 10, ocp.final("aileron.w") == 0)
ocp.minimize(ocp.T)                                    # or ocp.integral(m["..."]**2), ...
ocp.guess(dc.simulate(m, t_grid, u=feedback_law))      # optional initial guess
sol = ocp.solve()
sol.T, sol.t, sol.u, sol["act.cylinder.pA"]

The building blocks are:

• ocp.at(name, k), ocp.initial(name), ocp.final(name), ocp.trajectory(name);
• ocp.integral(expr), by the collocation quadrature;
• ocp.input(name).

ocp.opti is the underlying casadi.Opti, for anything else.

free_params=[...] turns parameters into decision variables, for design optimization or parameter estimation.

Kinks. Saturations, dead zones and valve metering edges are min/max/abs in the model. An optimum often sits exactly on such a kink, for example a valve held at zero opening, and IPOPT then fails to converge. dc.export(..., smooth=1e-3) replaces those kinks by smooth approximations of that width. smooth_if=True also blends the branches of if a < b expressions. The aileron example solves on the smoothed model, then replays the optimal command on the exact model to show the difference is negligible.

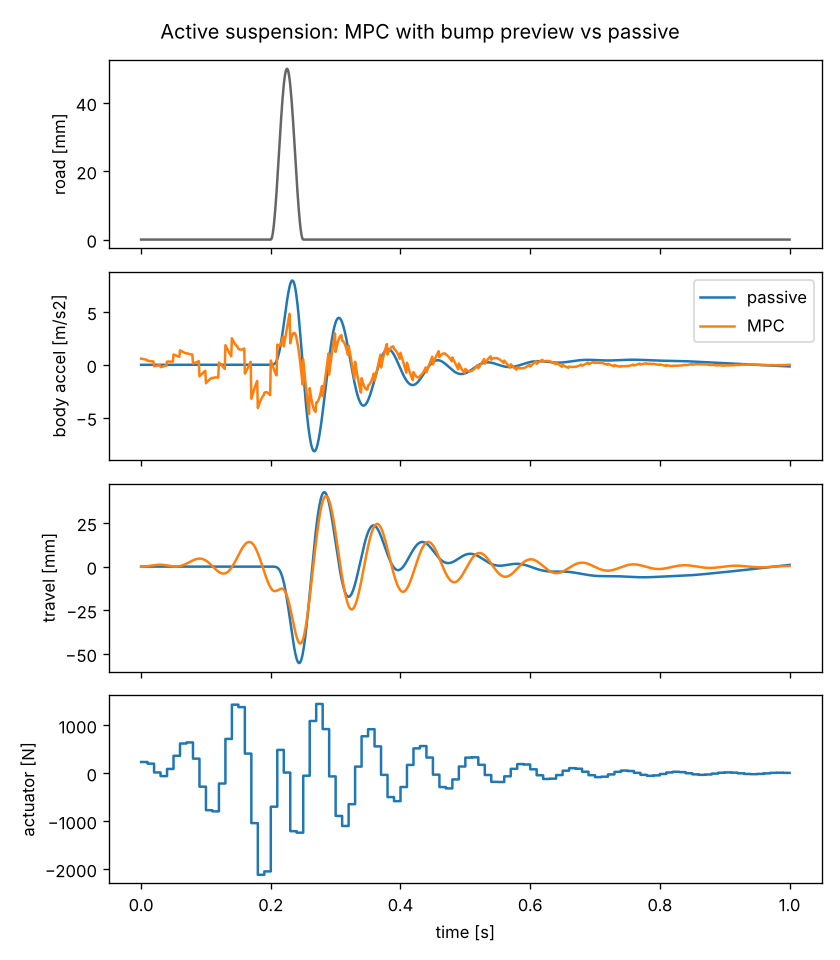

#Model predictive control

mpc = dc.MPC(m, N=25, dt=0.01, degree=2)
o = mpc.ocp
mpc.bound("F_act", -2500, 2500)
mpc.minimize(o.integral(m["a_body"]**2) + 10*o.integral((m["travel"]/0.03)**2)
             + o.integral((m["F_act"]/2500)**2))
u0 = mpc.step(x_measured, t)          # one solve, warm-started from the previous one
closed_loop = mpc.run(t_end=1.0)      # closed loop against the model (or plant=...)

The initial state and start time are parameters of one NLP that is built once. Each step warm-starts from the previous solution, shifted by one interval. Time-varying model inputs, such as a road profile given as a function of time, are therefore previewed by the prediction.

#Moving horizon estimation

mhe = dc.MHE(m, N=30, dt=1.0, measurements=["v_kmh"], meas_std=[0.3],
             process_std=[1e-3, 0.05], estimate_params=["body.Cd", "body.crr"],
             param_prior_std=[0.01, 0.001])
x_end, p_est = mhe.step(y_window, t0)       # y_window: (N + 1) x n_measurements
t_est, x_est, p_est = mhe.run(t, y)         # one window per new sample

Each window is a weighted least-squares problem over:

• the initial state;
• a disturbance on the state at every mesh point;
• the chosen parameters.

It is constrained by the model, with an arrival cost that carries the previous estimate forward. Known inputs are passed with u=.

#Examples

The plants are in Daedalus.Examples.OptimalControl. The scripts are in python/examples/, and each takes --plot out.png.

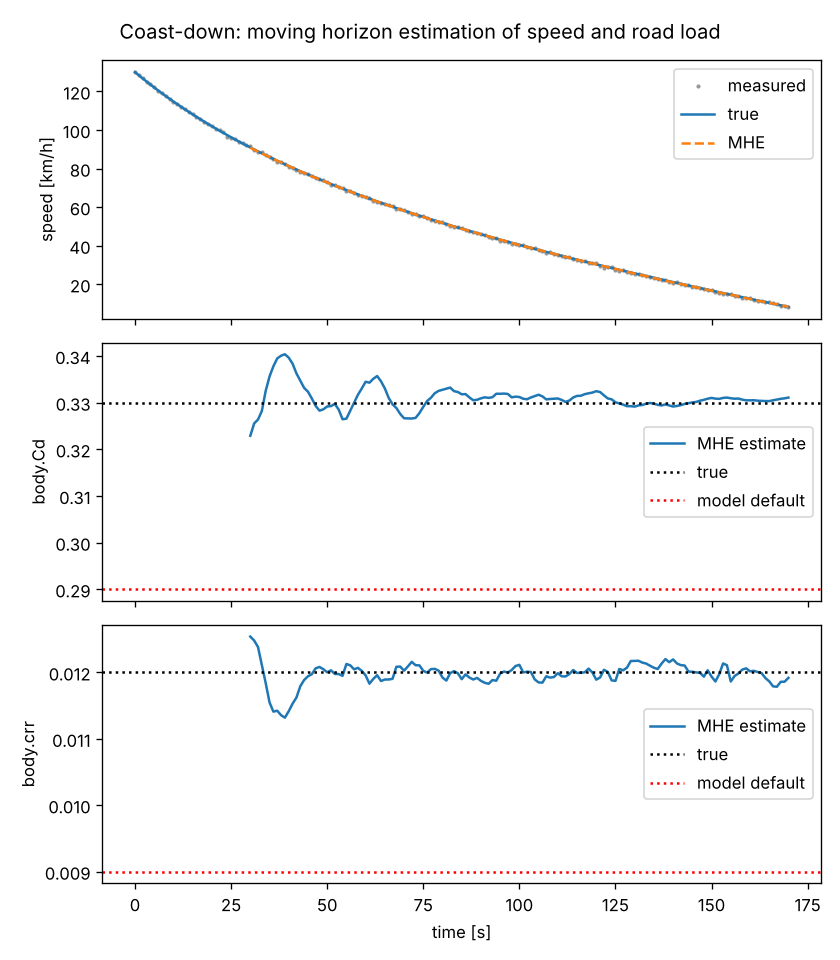

The MHE measurements come from DAEdalus itself, which simulates the "real" car with different coefficients from those of the model being estimated.

The numbers were measured on a 4-core cloud container with CasADi 3.8 and IPOPT with MUMPS.

#Tests

cargo test --release -p daedalus-core --test library casadi
python -m pytest python/tests

The Python tests check four things:

• every exported variable evaluates to DAEdalus' initialized value;
• CasADi simulations of the exported models match DAEdalus simulations;
• tables interpolate as in the simulator;
• each of the three problems reaches its expected result.
